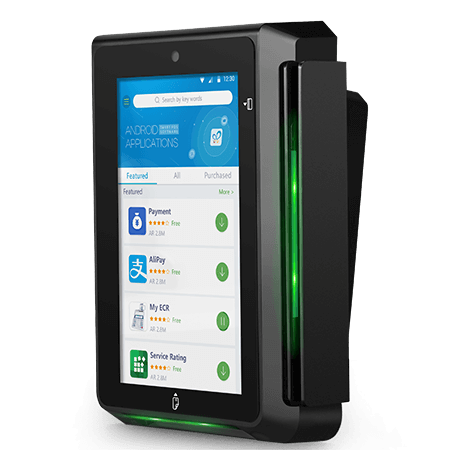

PAX IM30 FORMIDABLE Smart Unattended - (New)

PAX IM30 FORMIDABLE Smart Unattended - (New)

Regular price $662.00 USD
Regular price Sale price $662.00 USD
Sale Sold out
Shipping calculated at checkout.

Please call for availability at (470) 432-9104.

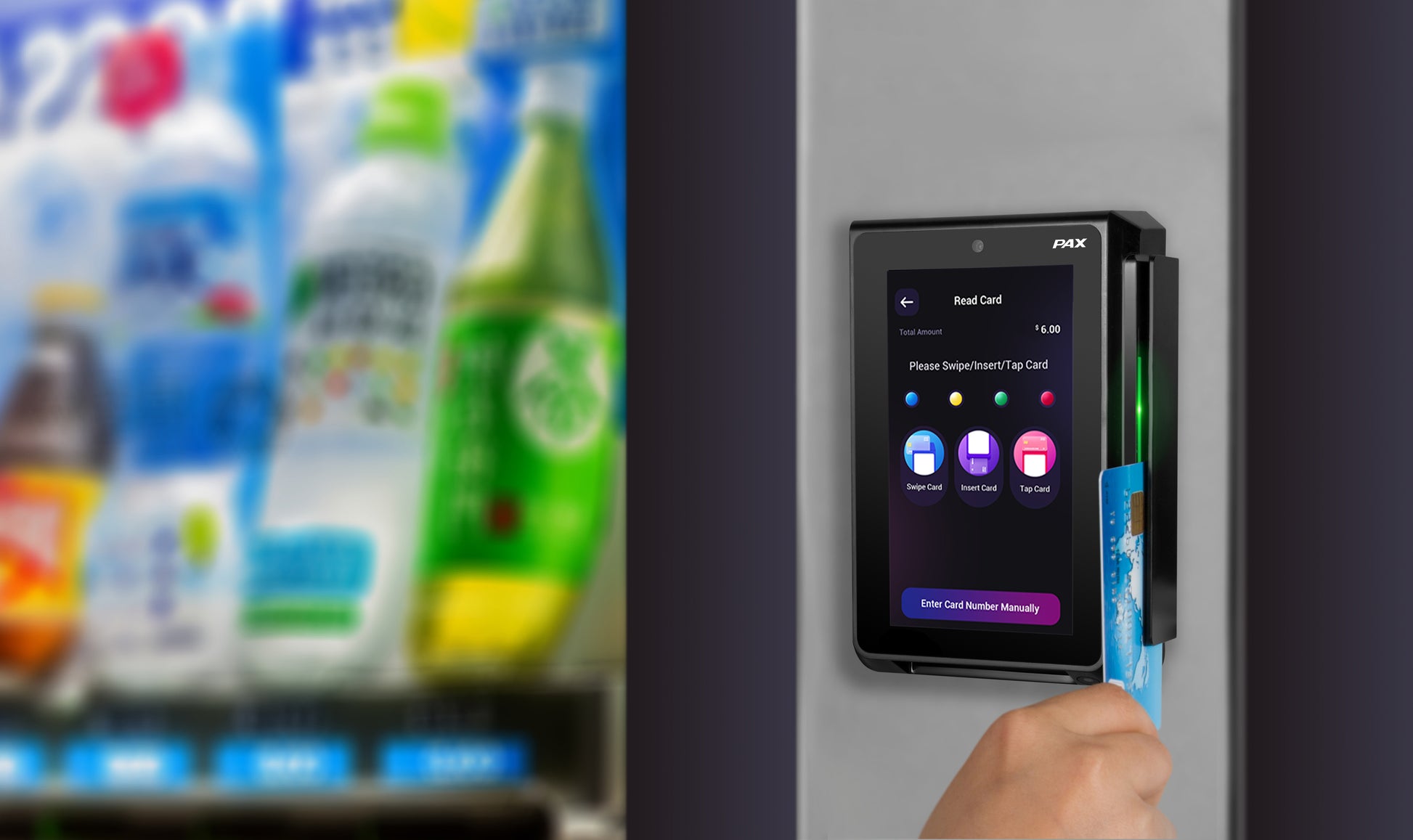

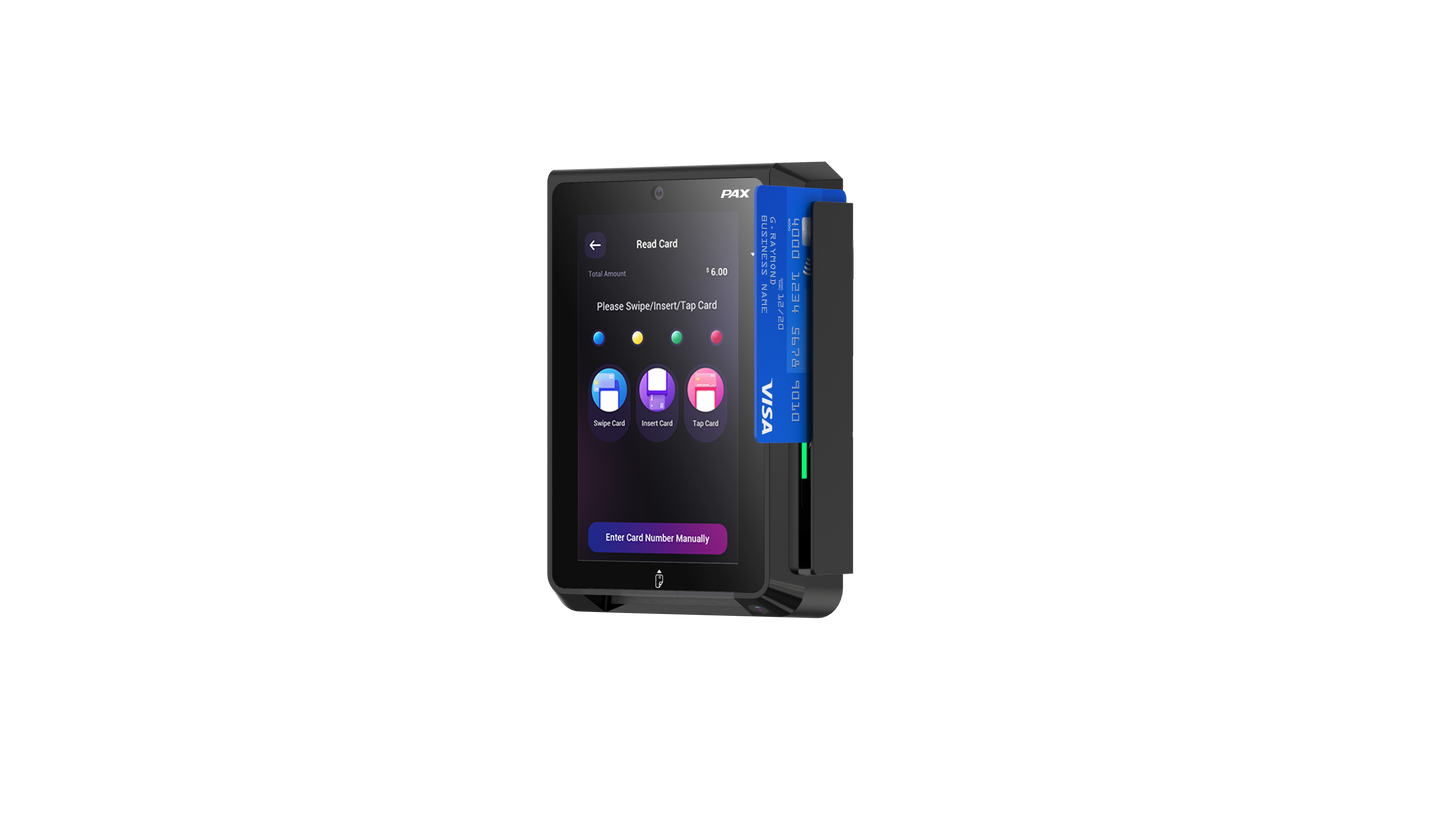

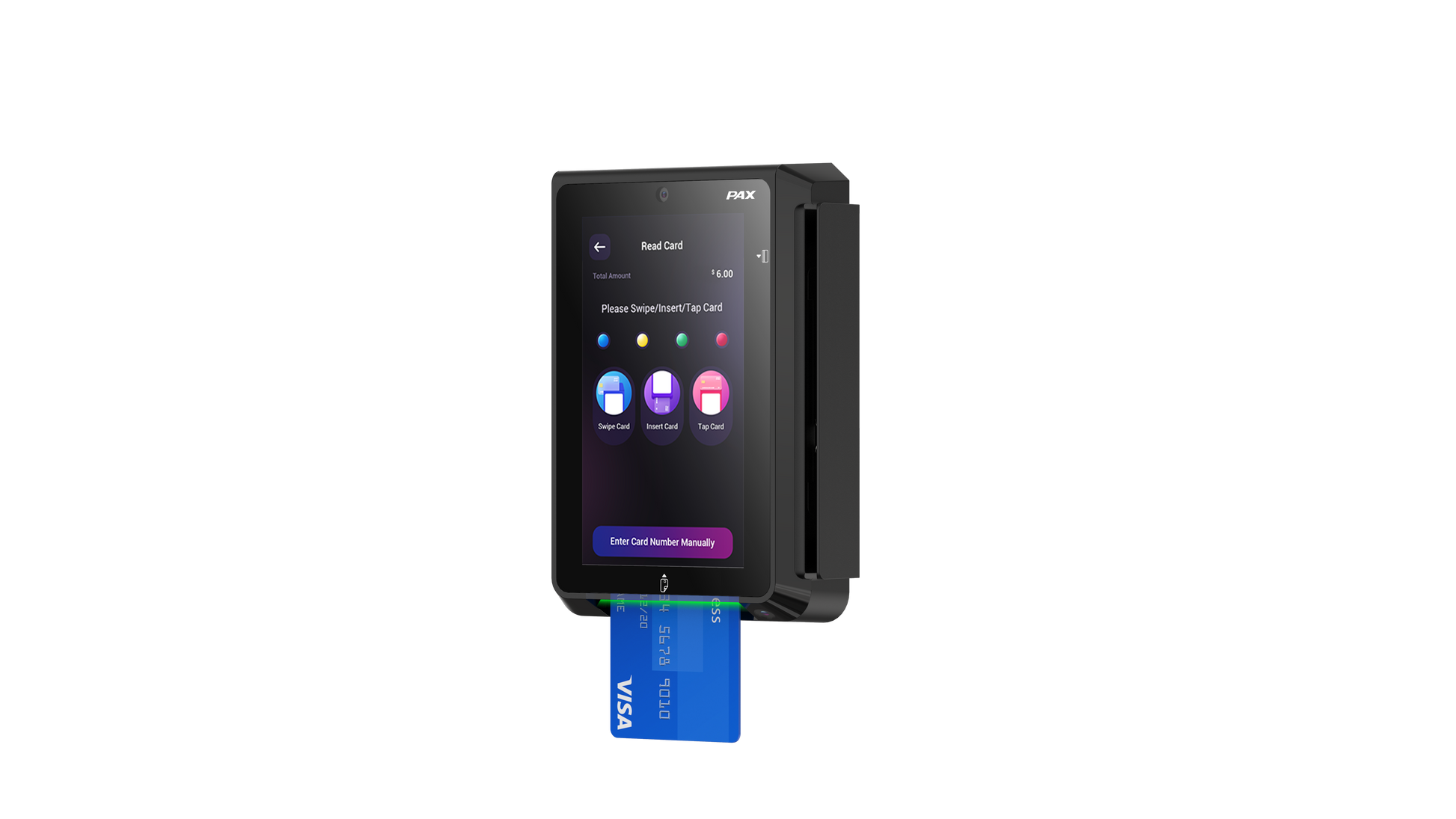

The PAX IM30 is a robust, all-in-one smart unattended payment terminal designed for self-service environments such as kiosks, vending machines, parking systems, and transportation hubs. Built to withstand outdoor conditions while delivering fast, secure, and versatile payment processing, the IM30 is ideal for businesses looking to offer a seamless, unattended customer experience.

Key Features:

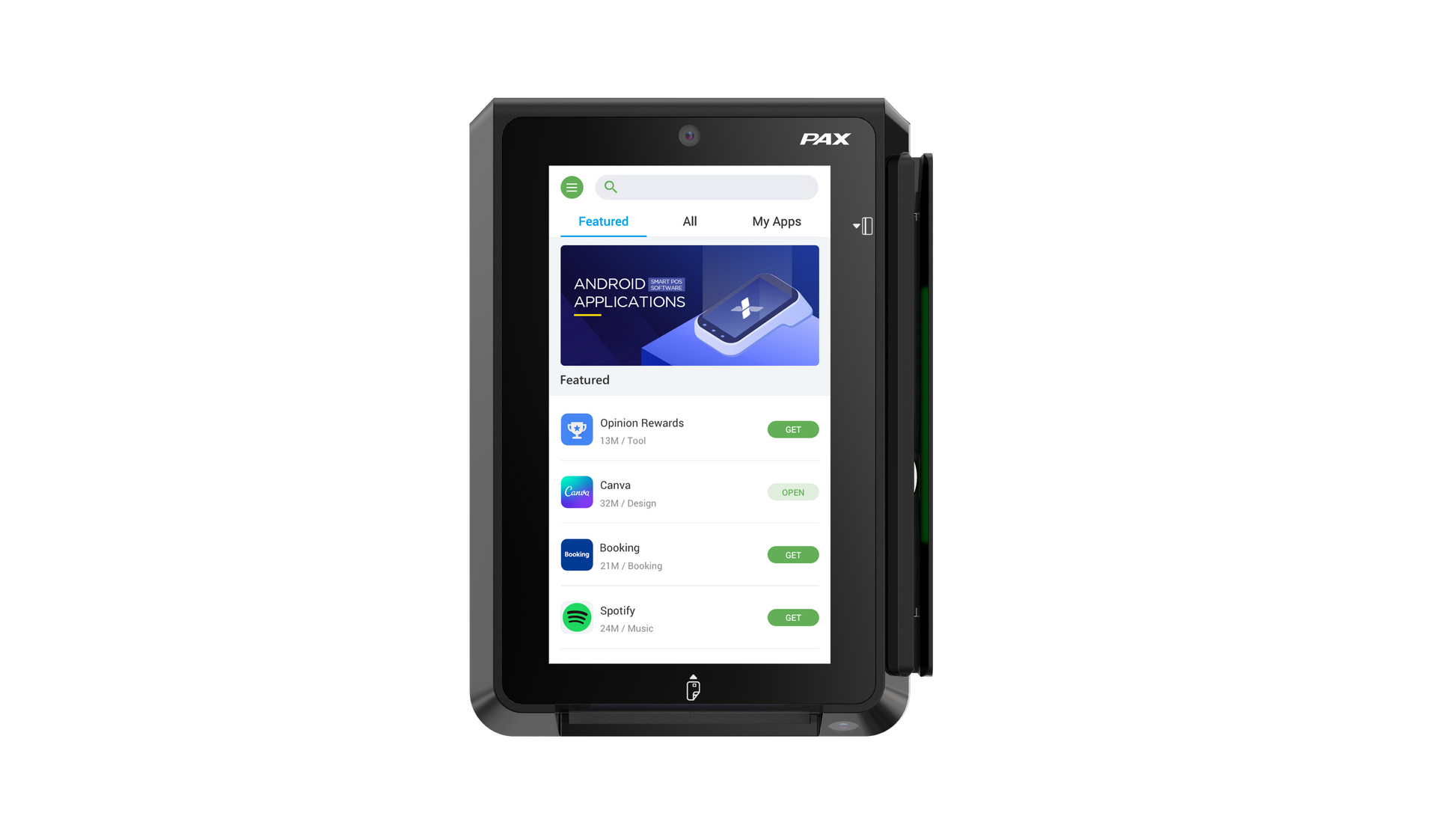

5-Inch Color Touchscreen: A bright, easy-to-use 5-inch color touchscreen provides an intuitive interface for customers, simplifying self-service transactions.

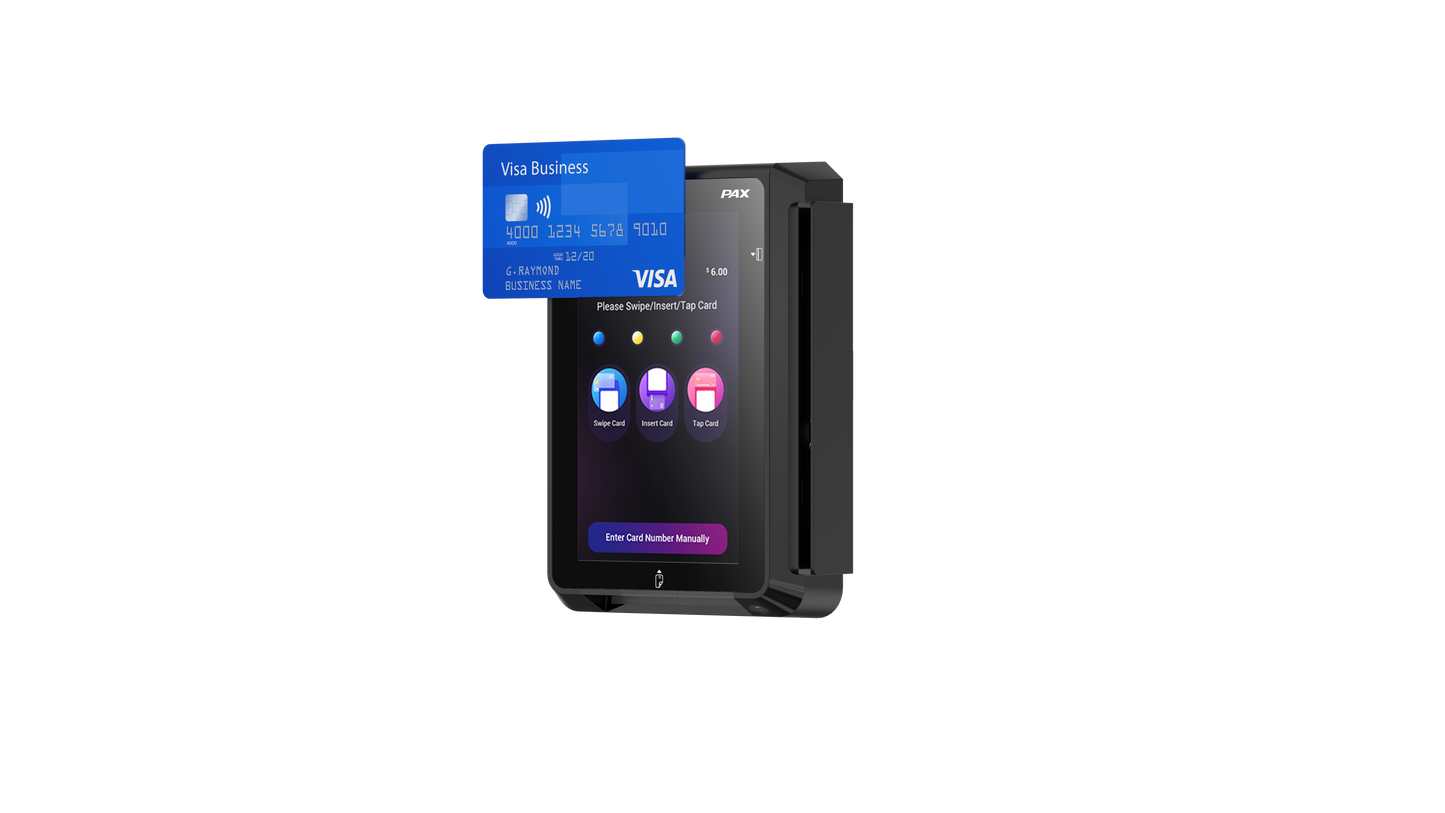

Comprehensive Payment Support: Accepts EMV chip cards, magnetic stripe cards, contactless payments like Apple Pay and Google Wallet, and QR code payments, ensuring compatibility with all major payment methods.

Durable, Weatherproof Design: IP65-rated for water and dust resistance, the IM30 is built to withstand harsh outdoor environments, ensuring reliable performance in any setting.

Vandal-Resistant Construction: Ruggedized design with vandal-proof features ensures long-term durability and security in high-traffic, unattended environments like kiosks and vending machines.

Advanced Security Features: Fully PCI PTS 5.x certified with advanced encryption technologies, the IM30 offers top-tier security for safe and secure payment processing.

Versatile Connectivity Options: Supports Ethernet, Wi-Fi, 4G, and Bluetooth connectivity, providing flexible integration with self-service systems and ensuring stable, reliable performance.

Remote Management Capability: Allows businesses to monitor, manage, and update devices remotely, reducing downtime and improving operational efficiency.

Unattended Operation: Designed specifically for self-service environments such as kiosks, parking machines, and transportation terminals, the IM30 provides fast, efficient, and unattended payment processing.

The PAX IM30 features a bright 5-inch color touchscreen display that ensures ease of use for customers in self-service environments. Its intuitive interface allows customers to quickly navigate through transactions, reducing friction and enhancing satisfaction. The terminal supports a comprehensive range of payment methods, including EMV chip cards, magnetic stripe cards, contactless payments like Apple Pay and Google Wallet, as well as QR code payments.

Specifications:

  • Operating System: PAXBiz® Powered by Android™ 7.1
  • Processor: Cortex A53
  • Memory: 8GB Flash + 1GB LPDDR3 RAM | Optional: 2GB LPDDR3 RAM

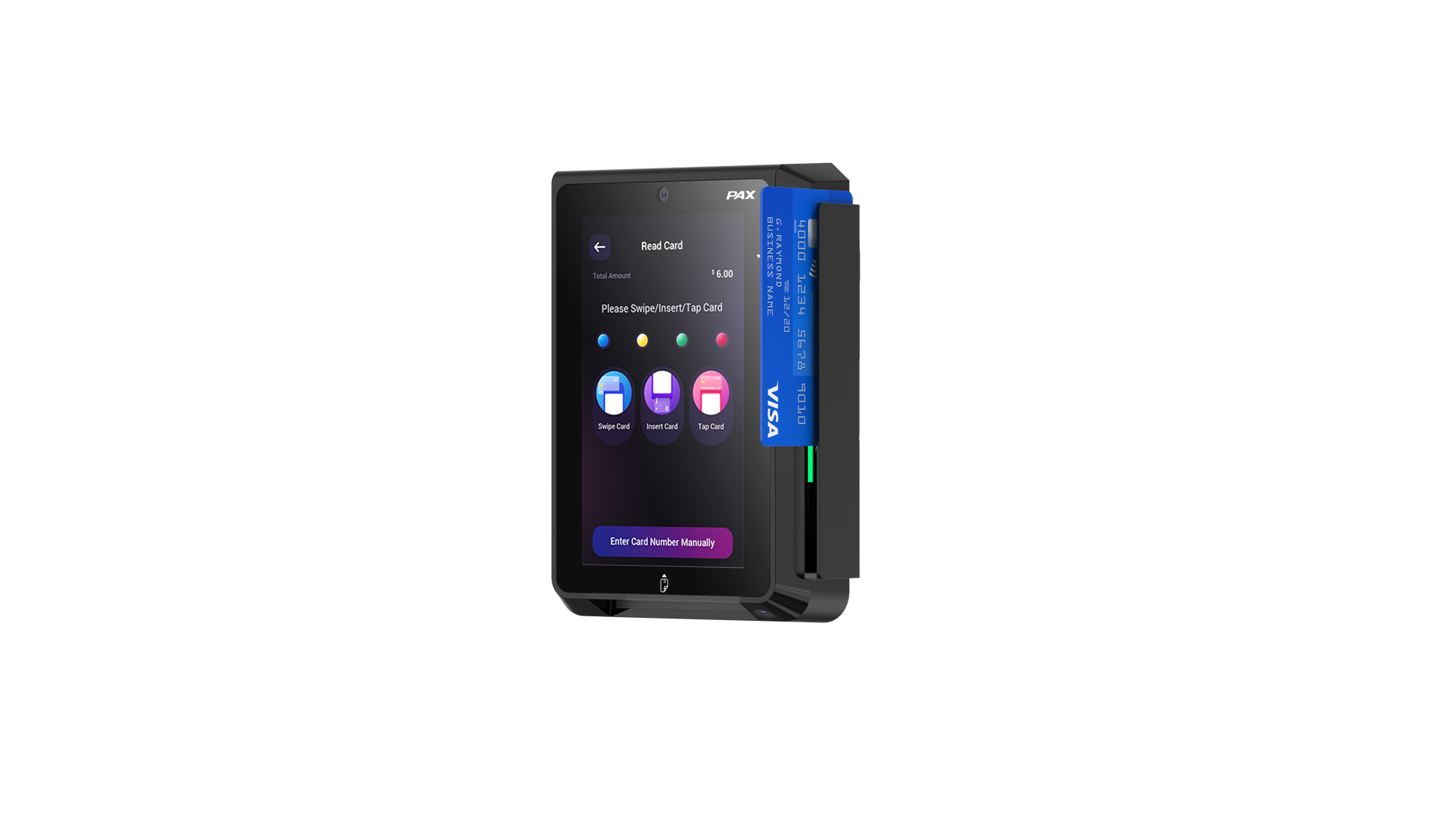

  • Card Readers: Chip & PIN | NFC Contactless | Magnetic Stripe
  • Cameras: 2MP Front-Facing
  • QR Scanner: 0.3 MP | Reads 1D & 2D Codes
  • Displays: 5'' TFT WXGA 720 x 1280 Pixels
  • Comms Configurations: 4G + Ethernet + Wi-Fi® (dual band) + Bluetooth® 5.0
  • Power: 12V - 48V DC via MDB Device | 12V - 48V DC via
    RS232 19V - 30V AC via Executive
  • SIM / SAM: 2 SAM
  • Keys / Buttons: 1 Reset Key | 1 Service Key
  • Audio: 1 Speaker
  • Ports: 2 RS232 | 1 USB Host | 1 USB OTG | 1 LAN | 1 MDB Slave | 1 HDMI
    1 Digital I/Os | 1 Mic & Speaker | 1 MDB Master & Executive
    2 SAM | 1 SIM Slot
  • Physical: External Dimension: W x H x D: 105 x 146 x 57mm
    Installation Cutout: W x H: 82 x 107mm
    Weight: 486g
  • Environmental: -20°C ~ 70°C (-4°F ~ 158°F) Operating Temperature
    -30°C ~ 70°C (-22°F ~ 158°F) Storage Temperature
    5% ~ 95% Relative Humidity, Non-Condensing
  • Accessories: Mounting Fixture
    External Antenna (optional)
  • Certifications: PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | Mastercard contactless | UPI qUICS | American Expresspay | Discover D-PAS | JCB J/Speedy | Interac Flash | Mastercard TQM | Common.SECC UKCC | CE |
    RoHs | UL | IC | FCC | ATEX | IP55 | IK08
