PAX A30 ENHANCED Smart Multilane - (New)
PAX A30 ENHANCED Smart Multilane - (New)
Couldn't load pickup availability
Please call for availability at (470) 432-9104.

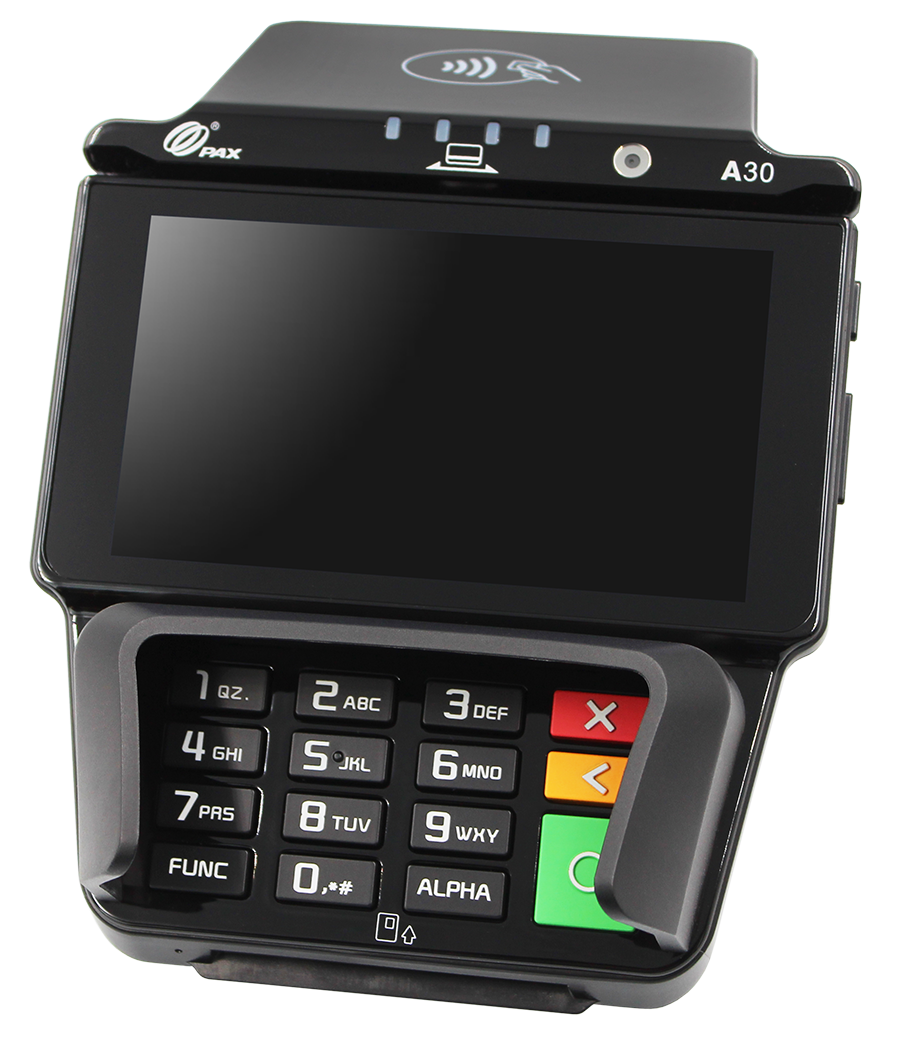

The PAX A30 is a next-generation smart multilane payment terminal designed to deliver high-speed, secure, and versatile payment processing in retail and service environments. Combining advanced technology with a sleek, modern design, the A30 enhances the customer experience by offering a smooth, intuitive checkout process at any point of sale.
Key features:
5-Inch HD Touchscreen Display: A vibrant, responsive touchscreen enhances the user experience, making transactions smoother and more efficient with clear, intuitive navigation.

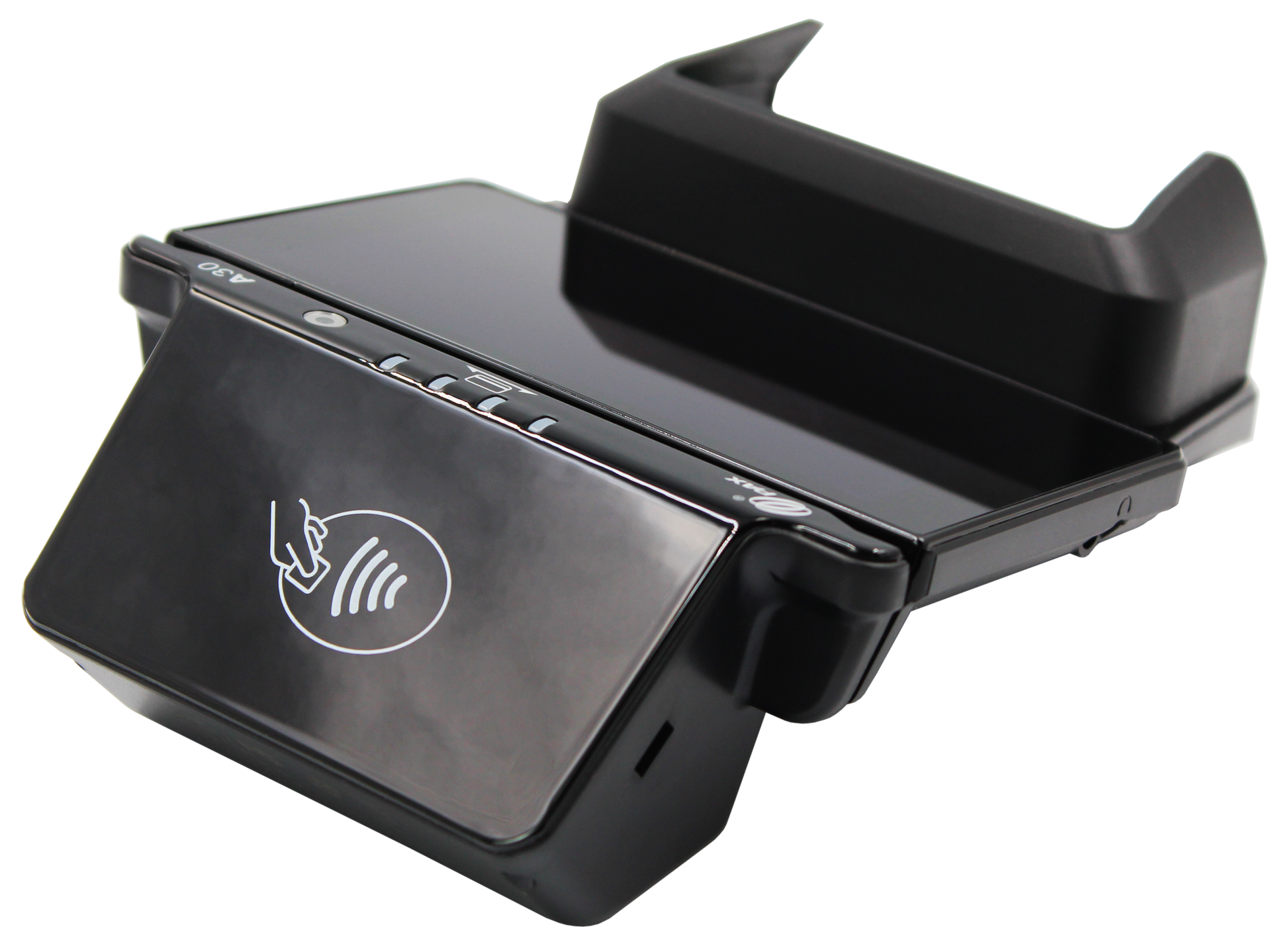

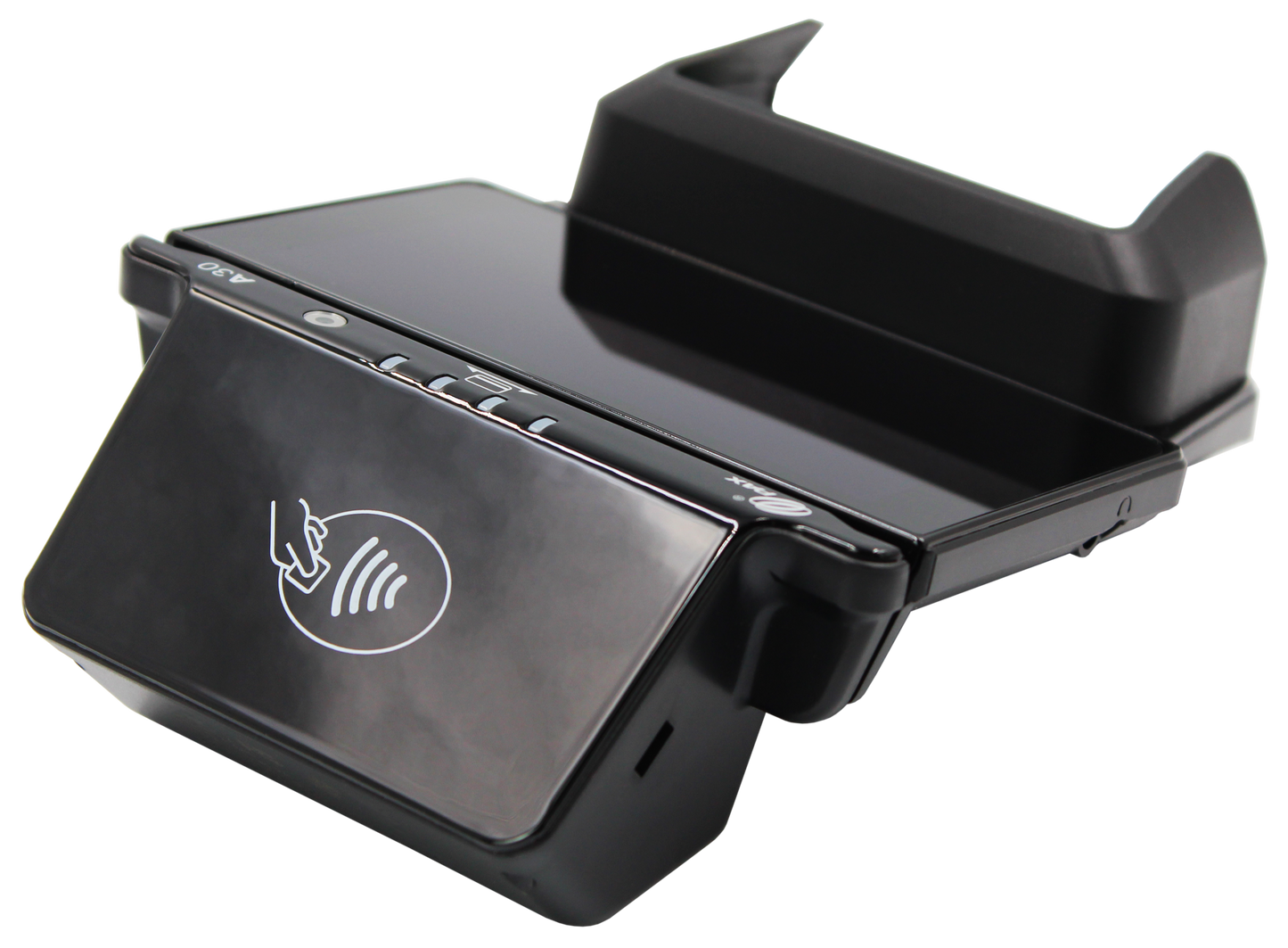

Comprehensive Payment Options: Supports EMV chip cards, magnetic stripe cards, contactless payments (Apple Pay, Google Wallet), and QR code payments, providing flexibility for customers and fast transactions.
Advanced Security: PCI PTS 5.x certified with cutting-edge encryption technologies, ensuring secure payment processing and protecting sensitive customer data.
High-Speed Processing: Powered by a robust processor to handle high transaction volumes quickly and reliably, even during peak business hours.
Multiple Connectivity Options: Offers Ethernet, Wi-Fi, and Bluetooth connectivity for seamless integration with existing systems, ensuring uninterrupted payment processing.

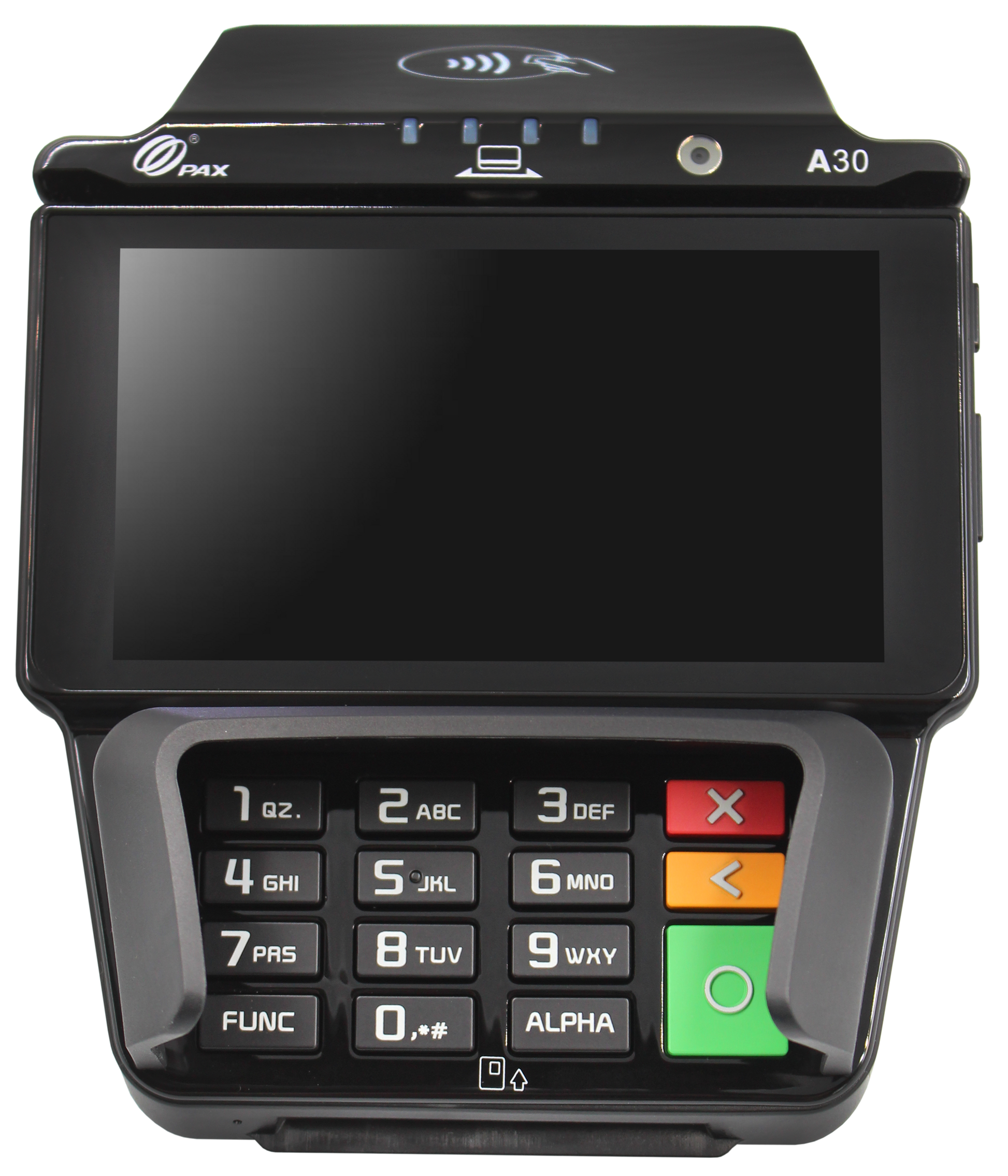

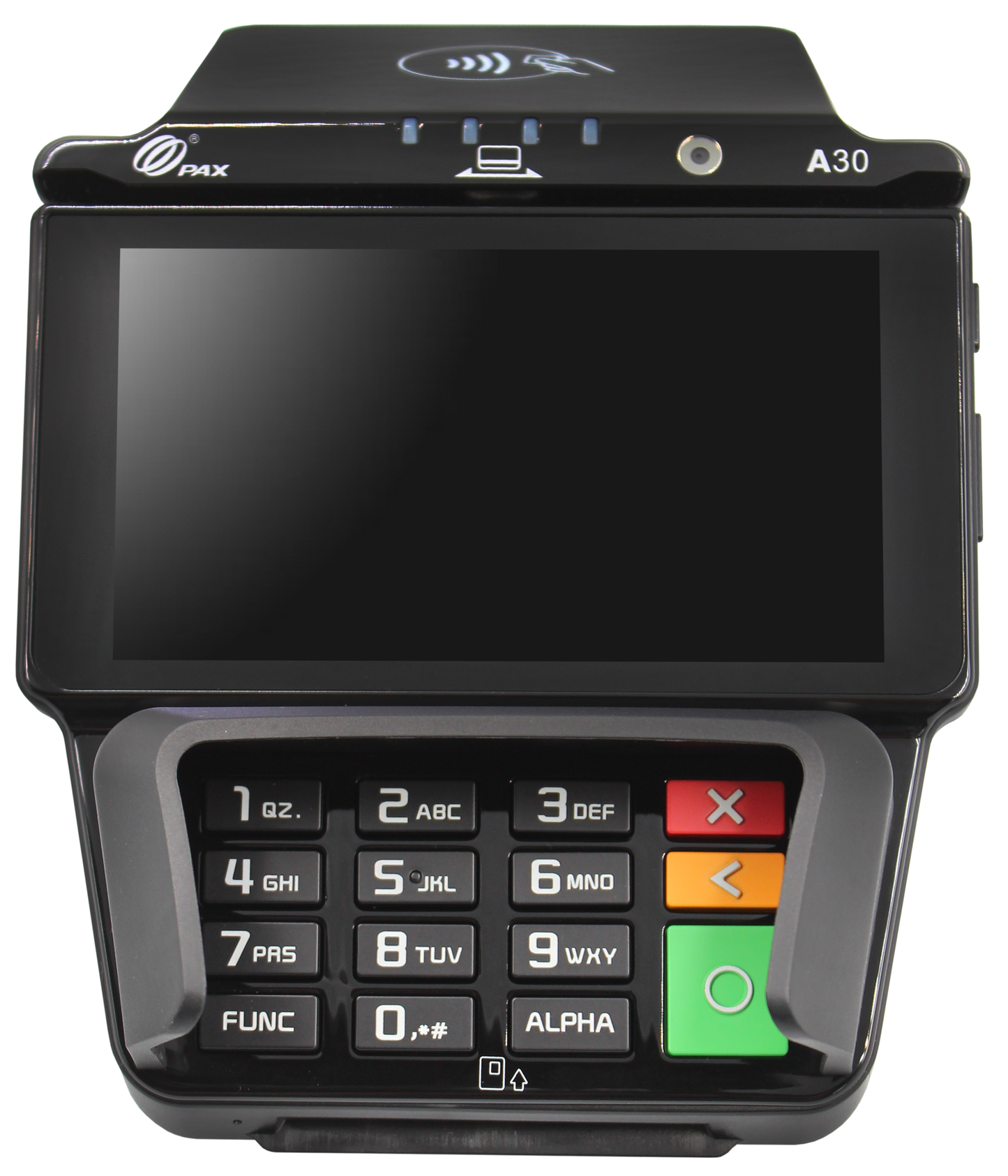

Featuring a large 5-inch HD touchscreen display, the PAX A30 provides a highly responsive interface that simplifies transactions and improves interaction with customers. Its sleek, ergonomic design fits perfectly in multilane checkout setups, while offering a clear, vibrant display for easy viewing and operation.
Specifications:
- Operating System: PAXBiz® Powered by Android™ 8.1
- Processor: Cortex A53 + ARMv7
- Memory: 8GB eMMC Flash + 1GB DDR RAM
Extended microSD Card Slot Up to 128GB - Card Readers: Chip & PIN | NFC Contactless | Magnetic Stripe
- Cameras: Optional: 0.3MP Front-Facing fixed focus
- Displays: 4.5'' IPS WXGA 1280 x 720 Pixels
Multi-Point Capacitive HD Touch Screen - Comms Configurations: Ethernet + Wi-Fi® 5GHz + Bluetooth® 4.2
- SIM / SAM: 2 SAM
- Positioning: GPS | GLONASS | BEIDOU
- Keys / Buttons: 18 Keys: Power ON/OFF | Volume+ | Volume- | 0~9 | Func | ALPHA | Cancel | Clear | Enter
Back-lightning - Audio: 1 Buzzer | 1 Speaker | 1 Audio Jack | 1 Microphone
- Ports: Default: 1 POE LAN (RJ45, 1000M in) | 1 Ethernet Port (RJ45, 1000M out/in) | 1 Type-C Port
Optional 1: 2 Ethernet Port | 1 PUSB Port | 1 Type-C Port
Optional 2: 1 Ethernet Port | 1 Serial Port | 1 PUSB Port | 1Type-C Port - Physical: 167 x 125 x 54mm, 300g
- Environmental: -10°C ~ 50°C (14°F ~ 122°F) Operating Temperature
-20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature
5% ~ 95% Relative Humidity, Non-Condensing - Accessories: Privacy Shields | Multiple Cabling Options
- Certifications: PCI PTS 5.x SRED | EMV L1 & L2 | EMV contactless L1 | Visa payWave | Mastercard contactless | UPI qUICS | American Expresspay | Discover D-PAS | JCB J/Speedy | Interac Flash | Mastercard TQM | Common.SECC UKCC | CE | RoHs | IC | FCC | UL
